Lifetime Warrenty on Transformers

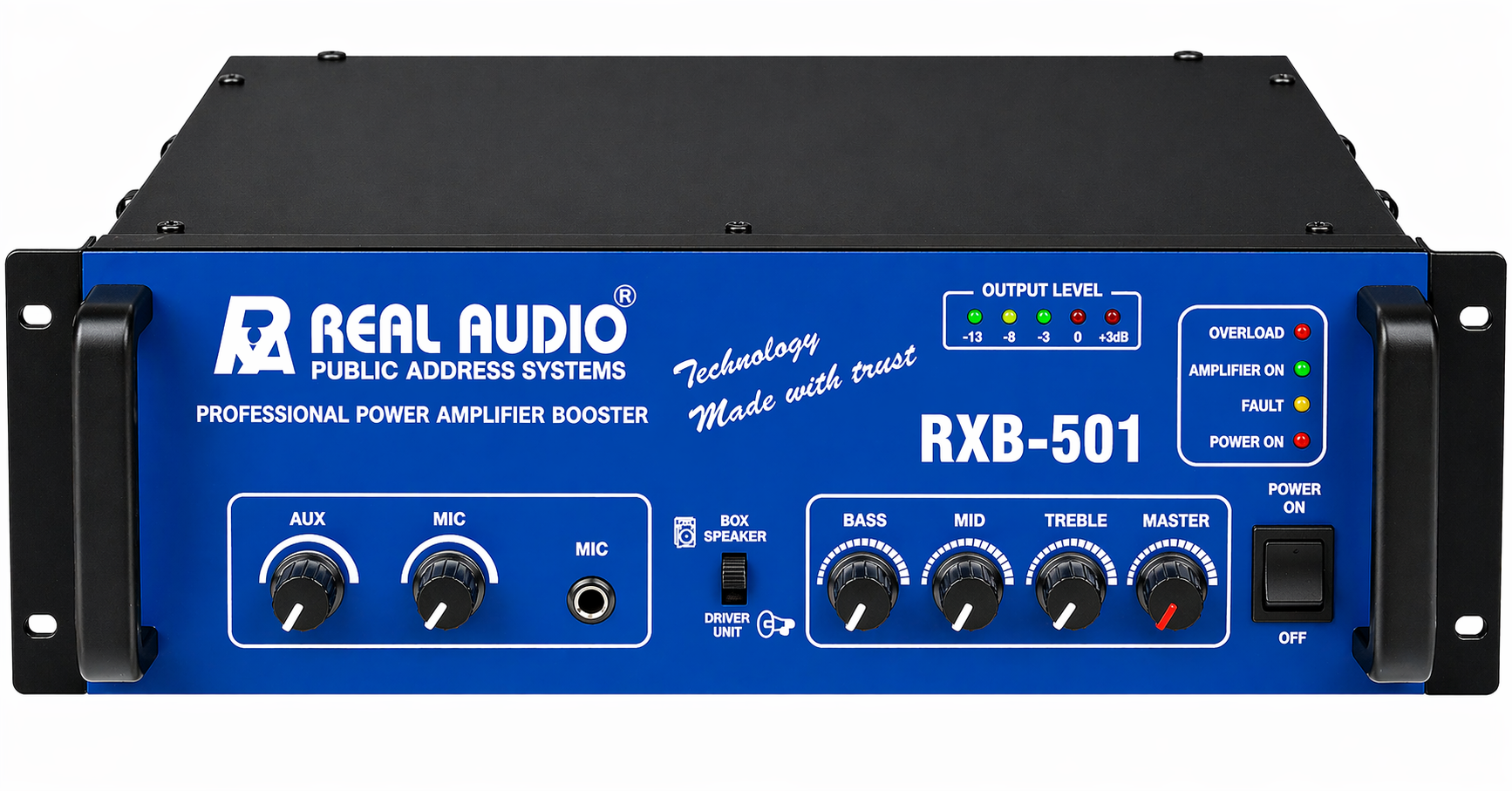

| MODEL | RXB - 501 |
| Power Output | 700 Max,500W RMS at 10%THD |
| Input Channel | 1x Mic .8mv / 4.7kΩ, 1x Aux - 100mv /470kΩ, 1x Line 1v /50kΩ |
| Frequency Response | 50Hz-15000 Hz + 3dB |
| Tone Control | Bass ± 10dB at 100Hz, Mid ± 10dB at 1KHz, Treble ± 10dB at 10KHz |
| Signal to Noise Rao | 60dB |
| Speaker Outputs | 2Ω, 4Ω, (for direct connecon) 70 & 100V Line (for use with LMT ) |
| Out Put | Line Out 1V / 1KΩ |
| Output Regulaon | ≤ 2dB no Load to full Load at 1KHz |
| Power Supply | 230V AC |
| Power Consumpon | AC 800VA |
| Cooling | AC Fan Cooling |
