POWER AMPLIFIERS

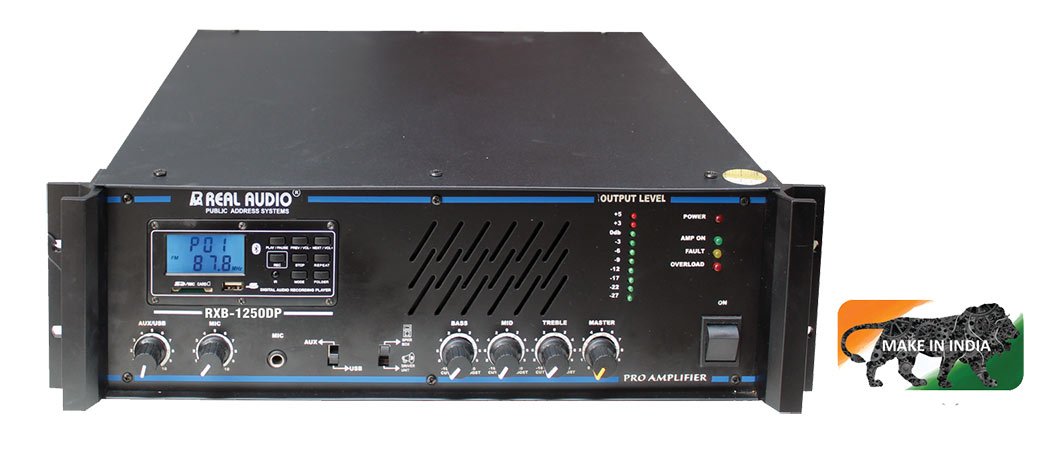

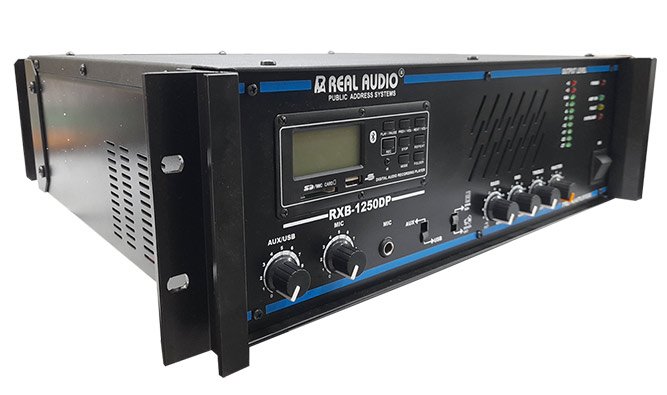

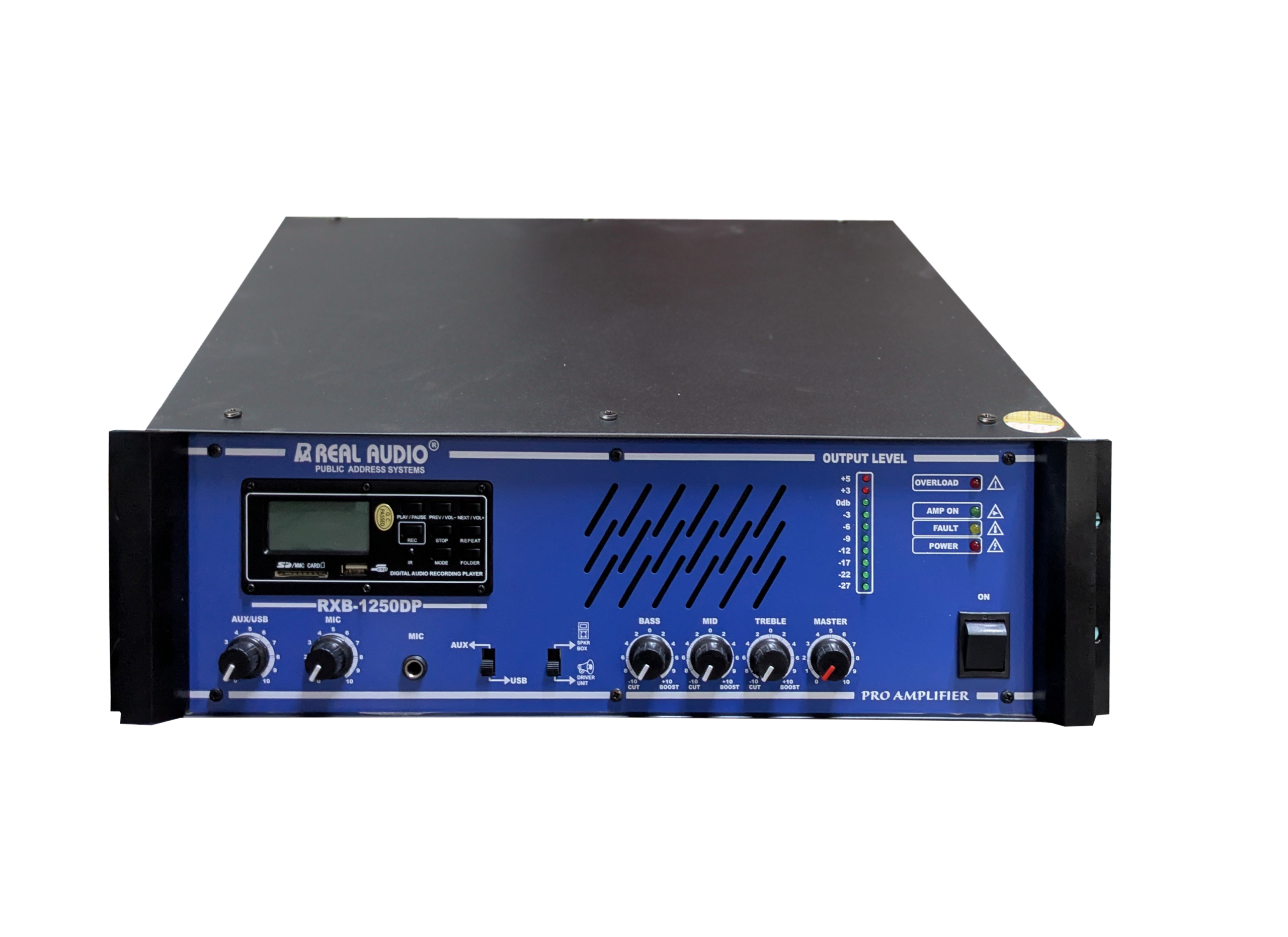

DJ & PA POWER AMPLIFIERS RXB-1250 DP
1. 1200 WATTS WITH BUILT-IN DIGITAL PLAYER.
2. DJ & PA POWER AMPLIFIER.
3. Designed for use in a wide variety of PA applications and DJ performances.
4. Built-in MP3 player and recording with remote control for USB, SD/MMC card reader/FM and Bluetooth facility.
5. RXB-1250 DP is a 1600 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
6. Bass,Mid and Treble controls provided for precise and accurate tonal setting of the programme.
7. Line Input and Line Output have been provided to enable interconnections with other power amplifiers.
8. Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit.
9. The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset.
10. Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided.
11. 2Ω speaker matching provided in addition to 4Ω with 70volt and 100volt connection.
| MODEL | RXB - 1250 DP |
| Power Output | 1400W Max, 1200W RMS at 10% THD |
| Input Channel | 1x Mic .8mv / 4.7 kΩ, 1x Aux -100mv /470kΩ, 1x Line 1v / 50kΩ |
| Digital Player | Mp3 Player, Recorder / FM Radio with Remote control USB / SD Card & MMC Card Reader with Bluetooth |
| Frequency Response | 50-15000Hz ± 3dB |
| Tone Control | Bass ± 10dB at 100Hz, Mid ± 10dB at 1KHz, Treble ± 10dB at 10KHz |
| Out Put | Line Out 1V / 1KΩ |
| Output Regulaon | ≤ 2dB no Load to full Load at 1KHz |
| Signal to Noise Rao | 60dB |

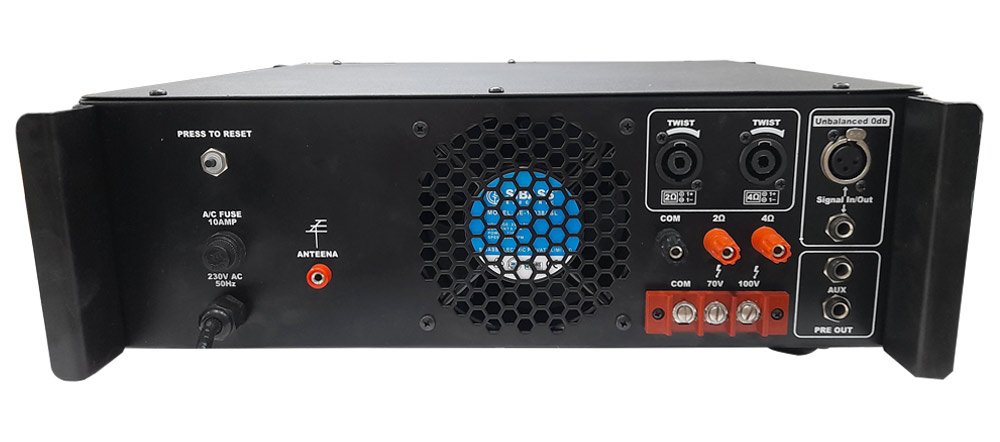

| Speaker Outputs | 2Ω, 4Ω, 8Ω (for direct connecon) 70 & 100V Line (for use with LMT ) |
| Power Supply | 230V AC |
| Power Consumpon | AC 1400VA |
| Cooling | Force Cooling |
