1. Designed for use in a wide variety of PA applications.

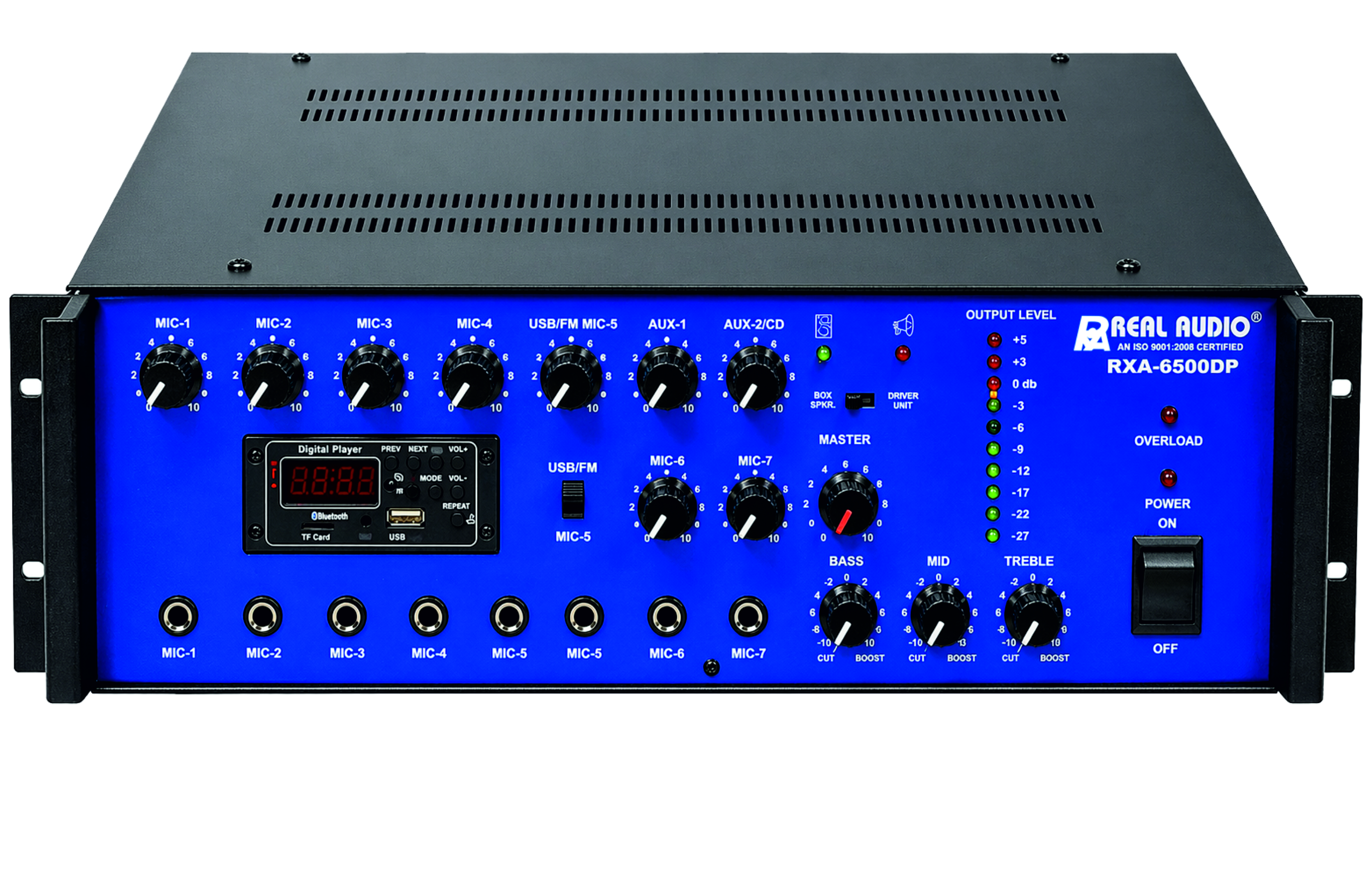

2. RXA-6500 DP is a 650 Watts Mixer Amplifier with 7 Unbalanced Independent Mic inputs and 2 independent auxilliary inputs.Second Auxiliary input is provided with RCA Socket connecting CD Player.
3. RXA-6500 DP has built-in MP3 Playback facality with BLUETOOTH and MP3 USB RECORDING
4. RXA- 6500 DP has a Preamp output for recording the program,a Line output for connecting to a Booster Amplifier and a Line input for connecting to an external PA Audio Mixer.
5. Box Speaker/ Driver unit selector swith has been provided for protecting the Driver Unit's daiphram from unwanted low frequencies. Since Box speakers can reproduce the full spectrum of audio frequencies, the swith should be positioned to the Driver Unit side when Driver Units,horns and Column speakers are connected.
6. Circuit protector Device has provided which safeguards the amplifier against overload and shortcircuit.
7. provision for automatic changeover from AC to Battery Operation ensuring continuity of program has been provided

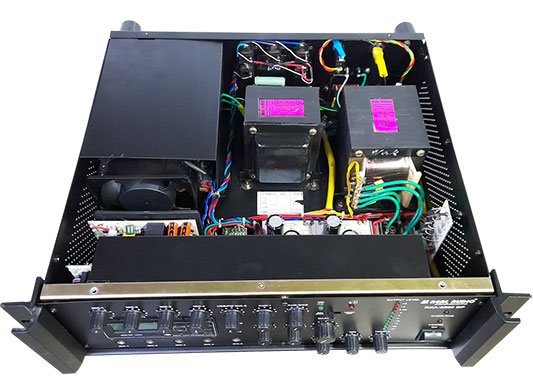

8. Ease of operation, combined with service accessibilty has been optimized in the design.
Lifetime Warrenty on Transformers
| MODEL | RXA - 6500 DP | |
| Power Output | 800W Max, 650W RMS at 10% THD | |
| Input Channel | 7x Mic .8mv / 4.7KΩ , 2x Aux 100mv /470kΩ 1xCD input 200mv / 470kΩ, 1x Line 1v / 50kΩ | |
| Digital Player | Mp3 Player, Recorder / FM Radio with Remote control USB / SD Card & MMC Card Reader with Bluetooth | |
| Frequency Response | 50-15000Hz ± 3dB | |
| Tone Control | Bass ± 10dB at 100Hz, Mid ± 10dB at 1KHz, Treble ± 10dB at 10KHz | |
| Out Put | Line Out 1V / 1KΩ, Preout 200mV / 600Ω | |
| Output Regulation |
|
|
| Signal to Noise Ratio | 60dB | |
| Speaker Outputs | 2Ω, 4Ω, (for direct connection) 70 & 100V Line (for use with LMT) | |
| Power Supply | 230V AC, DC 36V (12x3 Car Baery) | |
| Power Consumpon | AC 1000VA DC 8A | |
| Cooling | AC 4” Fan Cooling |
