1. Designed for use in a wide variety of PA applications.

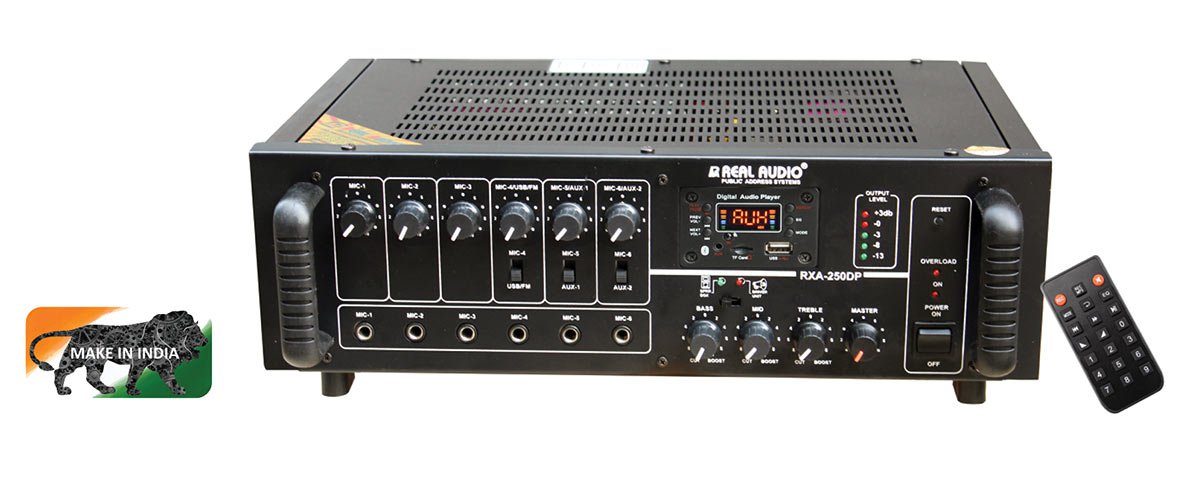

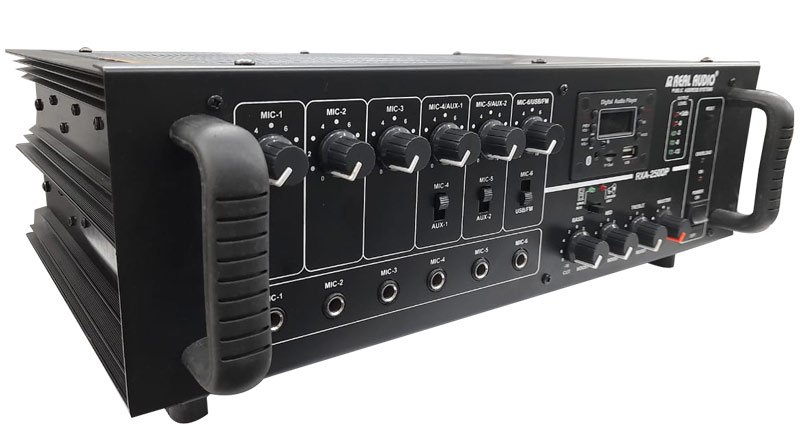

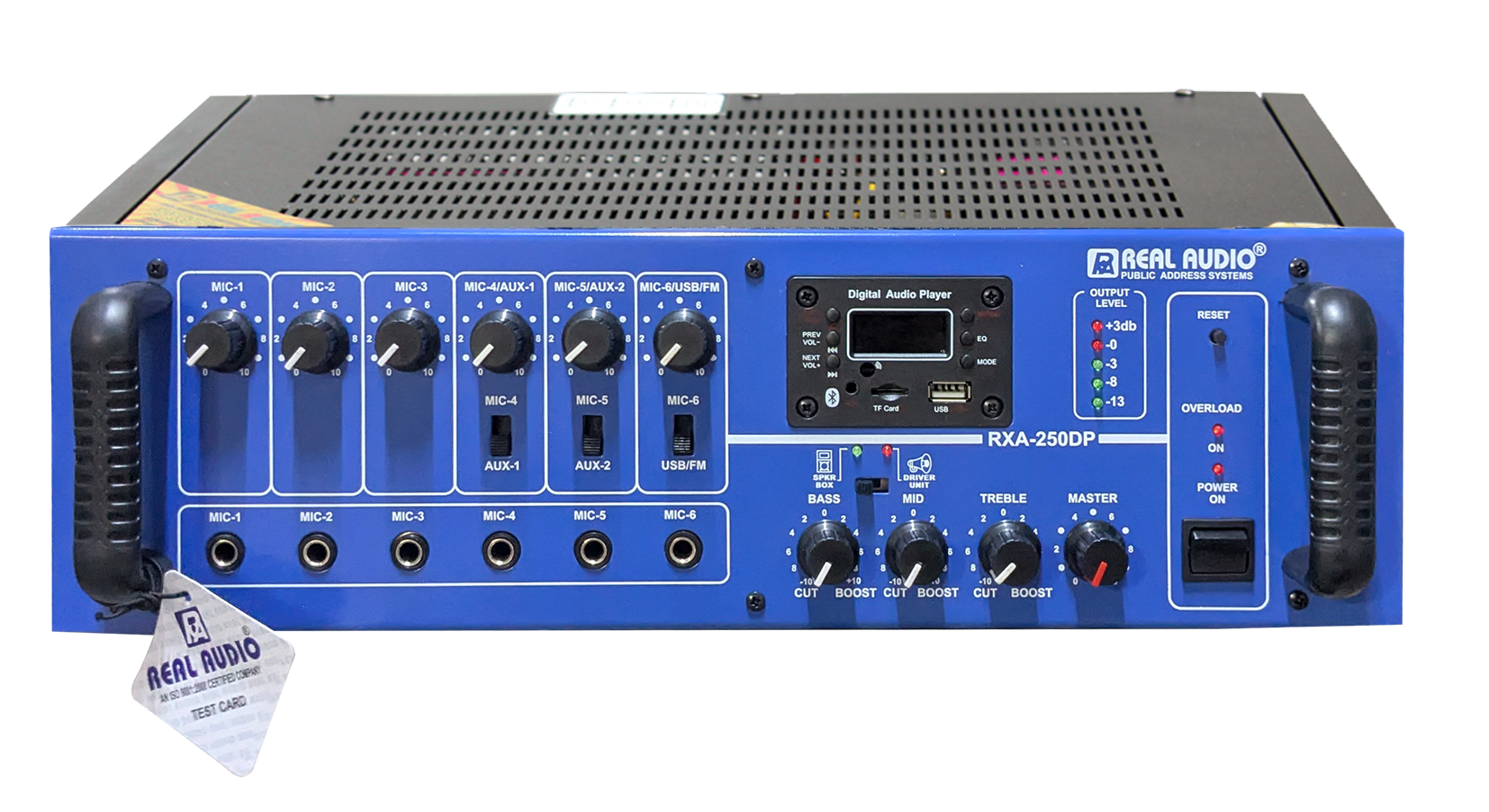

2. RXA-250 DP is a 250 Watts Mixer Amplifier with six Unbalanced Independent Mic inputs and two independent auxilliary inputs.Second Auxiliary input is provided with RCA Socket connecting CD Player.
3. RXA-250 DP has built-in MP3 Playback facality with BLUETOOTH .
4. RXA-250 DP has a Preamp output for recording the program,a Line output for connecting to a Booster Amplifier and a Lineinput for connecting to an external PA audio mixer.
5. Box Speaker/ Driver unit selector swith has been provided for protecting the Driver Unit's daiphram from unwanted low frequencies. Since Box speakers can reproduce the full spectrum of audio frequencies, the swith should be positioned to the Driver Unit side when Driver Units,horns and Column speakers are connected.
6. Circuit protector Device has provided which safeguards the amplifier against overload and shortcircuit.
7. provision for automatic changeover from AC to Battery Operation ensuring continuity of program has been provided
8. Ease of operation, combined with service accessibilty has been optimized in the design.
3 Years Warrenty on Transformers
| MODEL | RXA - 250 DP |
| Power Output | 300W Max, 250W RMS at 10% THD |
| Input Channel | 6x Mic .8mv / 4.7KΩ , 2x Aux 100mv /470kΩ 1xCD input 200mv / 470kΩ, Line in 1V / 50kΩ |
| Digital Player | Mp3 Player / FM Radio with Remote control USB / SD Card & MMC Card Reader |
| Frequency Response | 50-15000Hz ± 3dB |
| Tone Control | Bass ± 10dB at 100Hz, Treble ± 10dB at 10KHz |
| Out Put | Line Out 1V / 1KΩ, Preout 200mV / 600Ω |
| Output Regulaon | ≤ 2 dB, no load to full load at 1kHz |
| Signal to Noise Rao | 60dB |

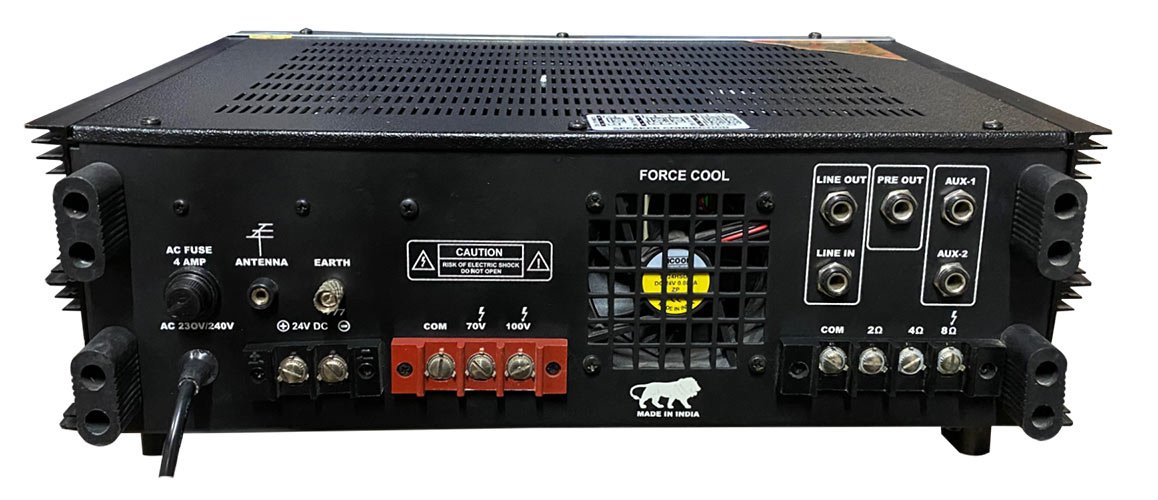

| Speaker Outputs | 4Ω, 8Ω, (for direct connecon) 70 & 100V Line (for use with LMT ) |
| Power Supply | 230V AC, DC 24V (12x2 Car Baery) |
| Power Consumpon | AC 400VA DC 4A |
