1. Designed for use in a wide variety of PA applications.

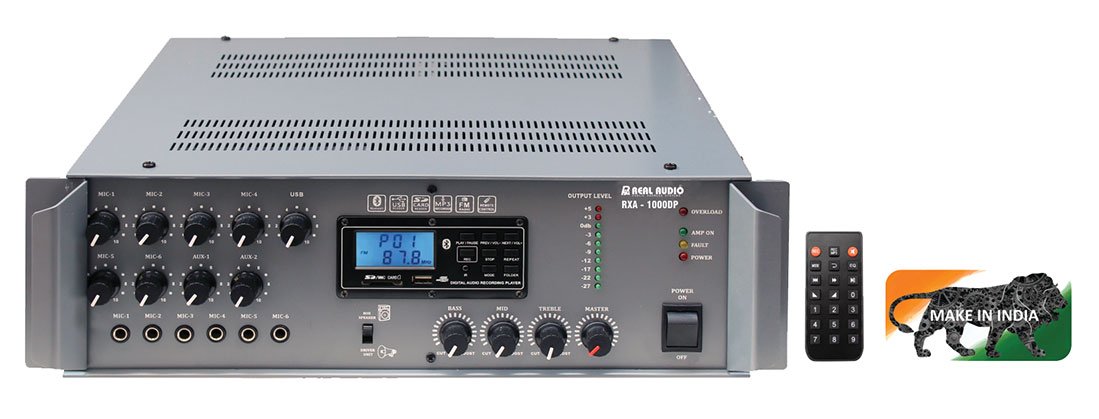

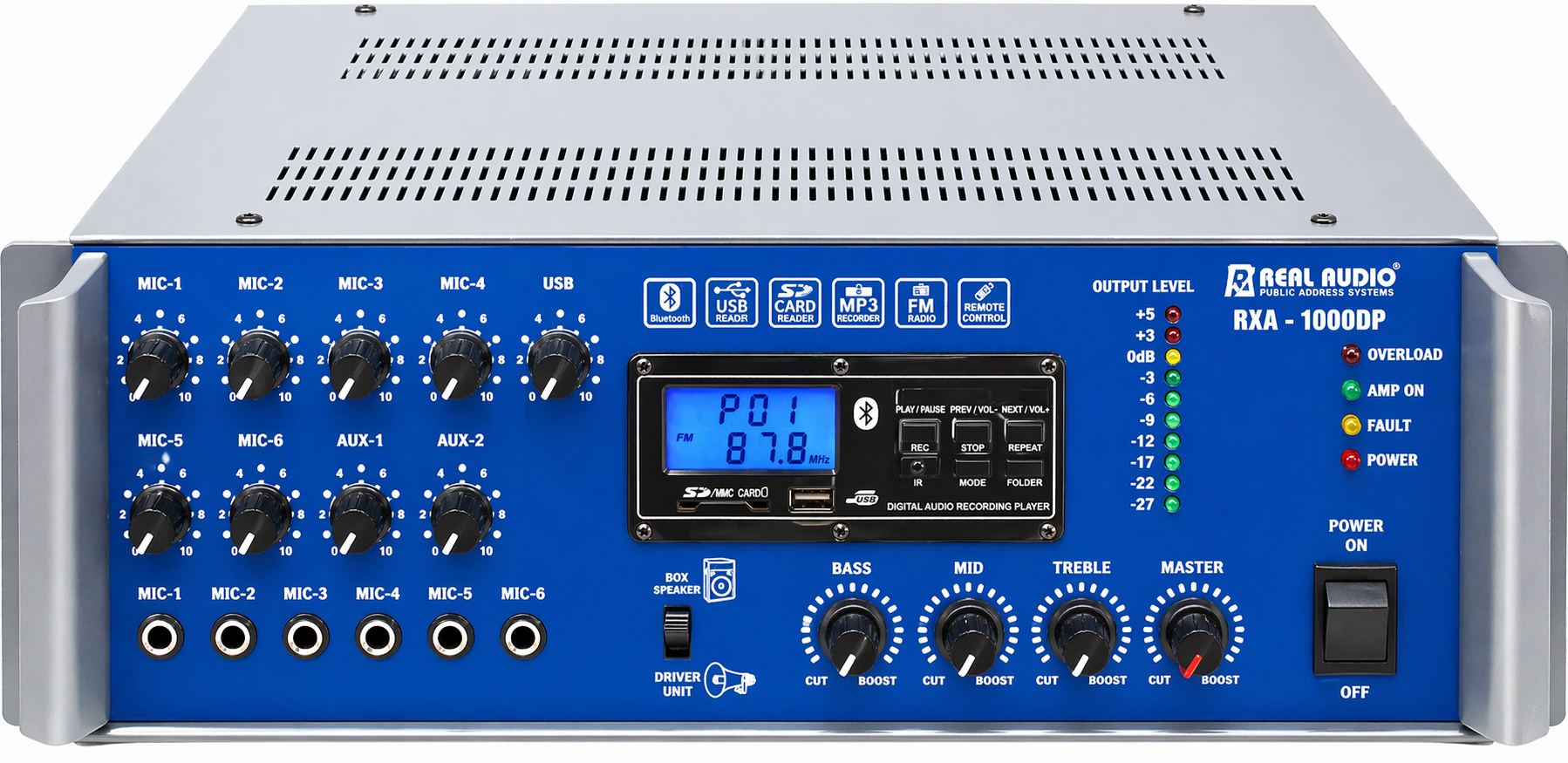

2. RXA-1000 DP is a 1000 Watts Mixer Amplifier with seven Unbalanced Independent Mic inputs and two independent auxilliary inputs.
3. RXA-1000 DP has built-in MP3 Playback facality with BLUETOOTH and MP3 USB RECORDING

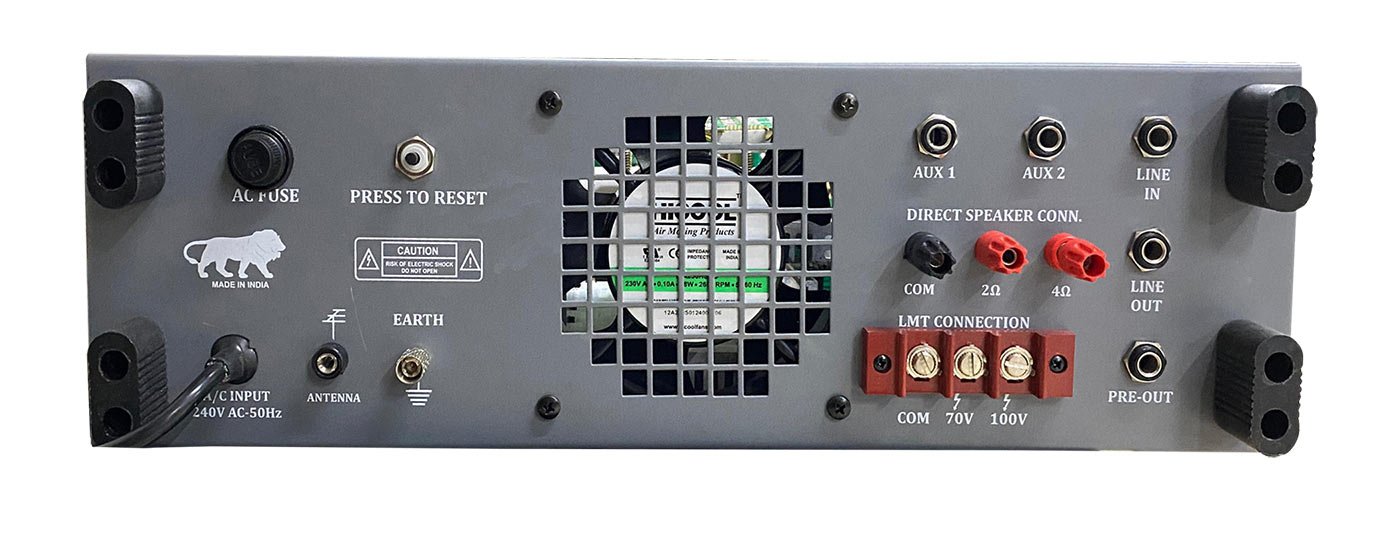

4. RXA- 1000 DP has a Preamp output for recording the program,a Line output for connecting to a Booster Amplifier and a Lineinput for connecting to an external PA audio mixer.
5. Box Speaker/ Driver unit selector swith has been provided for protecting the Driver Unit's daiphram from unwanted low frequencies. Since Box speakers can reproduce the full spectrum of audio frequencies, the swith should be positioned to the Driver Unit side when Driver Units,horns and Column speakers are connected.
6. Circuit protector Device has provided which safeguards the amplifier against overload and shortcircuit.
7. Ease of operation, combined with service accessibilty has been optimized in the design.

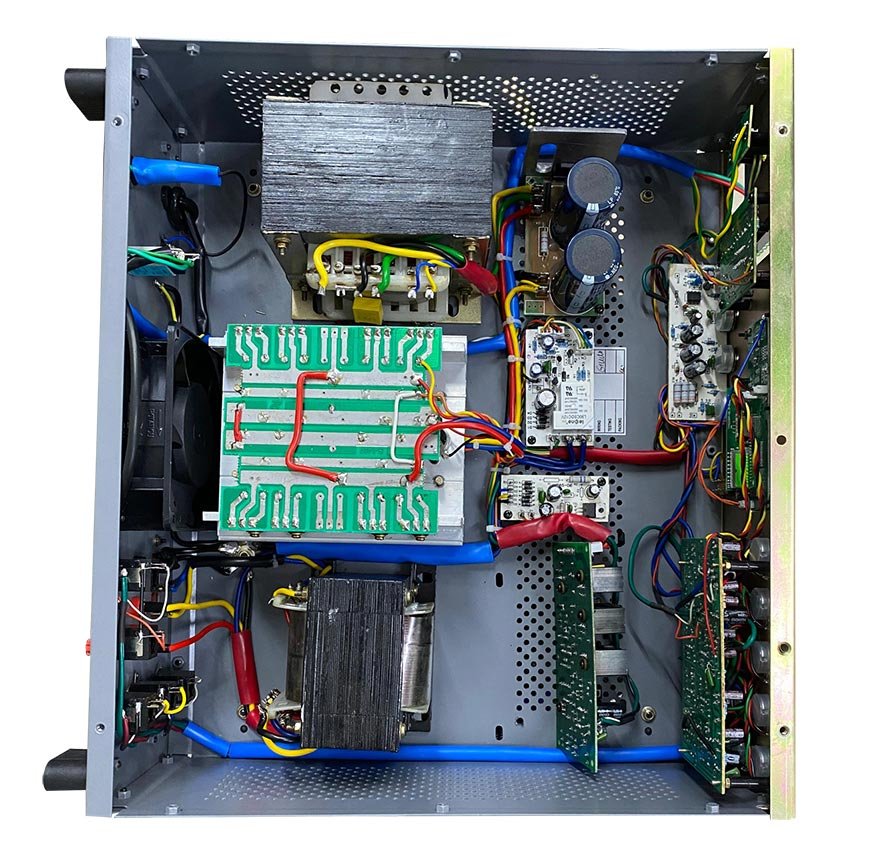

Lifetime Warrenty on Transformers
| MODEL | RXA - 1000 DP | |
| Power Output | 1200W Max, 1000W RMS at 10% THD | |
| Input Channel | 6x Mic .8mv / 4.7KΩ , 2x Aux 100mv /470kΩ 1xCD input 200mv / 470kΩ, 1x Line 1v / 50kΩ | |
| Digital Player | Mp3 Player, Recorder / FM Radio with Remote control USB / SD Card & MMC Card Reader with Bluetooth | |
| Frequency Response | 50-15000Hz ± 3dB | |
| Tone Control | Bass ± 10dB at 100Hz, Mid ± 10dB at 1KHz, Treble ± 10dB at 10KHz | |
| Out Put | Line Out 1V / 1KΩ, Preout 200mV / 600Ω | |
| Output Regulation |
|
|
| Signal to Noise Ratio | 60dB | |
| Speaker Outputs | 2Ω, 4Ω, (for direct connecon) 70 & 100V Line (for use with LMT ) | |
| Power Supply | 230V AC, DC 36V (12x3 Car Baery) | |
| Power Consumption | AC 1000VA DC 8A | |
| Cooling | AC 4” Fan Cooling |
